Pergolas instantly add structure, shade, and style to a yard—and they’re far more customizable than most people realize. Whether you’re working with a tiny patio or a sprawling lawn, the basic pergola-building process stays similar: plan your size and layout, set strong posts in concrete, add beams and rafters overhead, then finish with stain, paint, plants, or fabric.

For most DIY-friendly pergola projects, you’ll want a core toolkit: pressure-treated lumber or metal posts, post anchors or concrete mix, measuring tape, level, post-hole digger, circular saw, drill/driver, exterior screws/bolts, ladder, clamps, exterior wood stain or paint, and optional extras like shade cloth, outdoor fabric, string lights, hanging planters, and vines.

1. Split-Level Lounge & Dining Pergola

Create a pergola that visually separates dining and lounging zones with a subtle change in roof height.

What makes it unique

Instead of one flat roof, this pergola has two slightly different levels: a higher, airier section over the lounge and a lower, cozier section over the dining area.

Materials needed

  • Pressure-treated 4×4 or 6×6 posts
  • 2×8 or 2×10 beams, 2×6 rafters
  • Concrete mix for footings or metal post bases
  • Exterior screws/bolts, post caps
  • Outdoor stain or paint
  • String lights or lanterns
  • Outdoor curtains (optional)

How to make

  1. Sketch your footprint: for example, a 3×33×3 m section for dining and a 3×33×3 m section for lounging, joined along one long side.
  2. Set your posts: dig post holes or use post bases, ensuring everything is square. Make the lounge posts about 15–30 cm taller than the dining posts.
  3. Bolt beams to the tops of the posts, creating two frames that are connected along their shared side.
  4. Add rafters across each section. On the taller lounge side, space rafters slightly wider for a more open feel; on the lower dining side, space them closer to create more shade.
  5. For extra definition, run one or two diagonal rafters at the height transition to visually “step” the two levels.
  6. Sand, stain, or paint the entire structure in a cohesive color.
  7. Hang slightly different lighting in each zone—soft ambient in the lounge, brighter over the dining table.
  8. Add a low outdoor sofa or sectional on the higher side and a sturdy table set under the lower canopy.

2. Slatted “Light Tunnel” Pergola Path

Turn a simple side yard path into a dramatic tunnel of light and shadow with tightly spaced slats overhead.

What makes it unique

Instead of a square sitting area, this pergola forms a long, narrow tunnel—almost like an outdoor hallway—with vertical and overhead slats that create beautiful shadow patterns.

Materials needed

  • 4×4 posts
  • 2×4 beams and rafters
  • Narrow 1×2 or 1×3 slats
  • Concrete mix or post bases
  • Exterior screws
  • Outdoor stain or paint
  • Climbing plants (optional)

How to make

  1. Mark out a straight path (for example, 1.2×41.2×4 m) along a side yard or between garden beds.
  2. Install pairs of posts along the path every 1–1.51–1.5 m, setting them securely in concrete.
  3. Attach beams to connect each pair of posts at the top, forming a long rectangular frame.
  4. Add rafters across the top, then tightly space 1×2 slats above them, running perpendicular to the path. Leave small gaps for sun beams.
  5. For a “tunnel” effect, add vertical slats along the sides between posts, leaving door-like openings at each end.
  6. Stain or paint the entire structure. Warm woods create a spa vibe; black or charcoal feels architectural and modern.
  7. Plant low groundcover or simple stepping stones beneath. Add a creeping vine at each end if you want some greenery to climb over time.

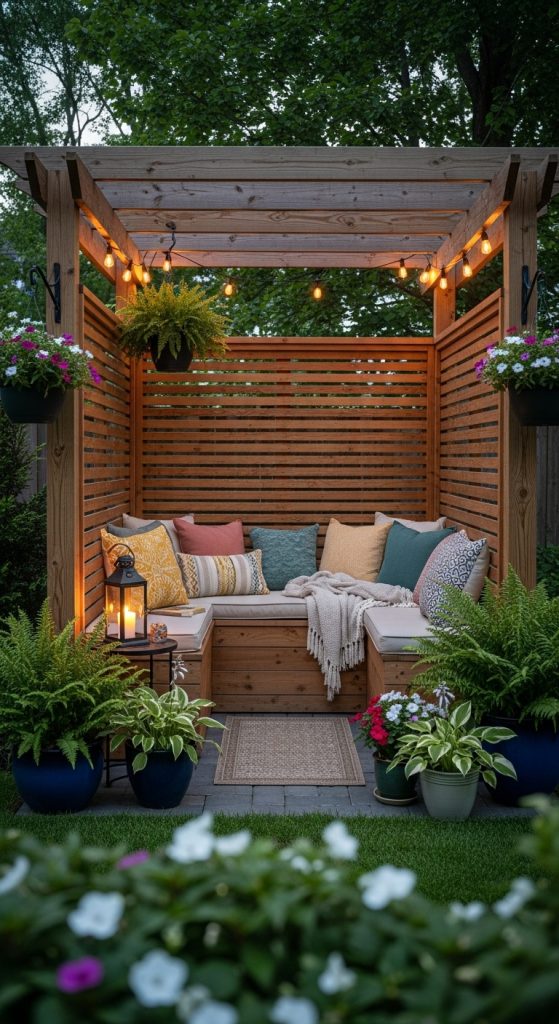

3. Corner “Reading Nook” Pergola Pod

A compact, partially enclosed pergola tucked into a corner of the yard, designed just for one or two people.

What makes it unique

Instead of dominating the yard, this mini pergola hugs a corner like a built-in reading nook with wraparound slats and a built-in bench.

Materials needed

  • 4×4 posts (3 or 4, depending on design)
  • 2×4 beams and rafters
  • 1×4 slats for side screens
  • Concrete or post anchors
  • Exterior screws
  • Bench decking boards
  • Outdoor cushions, throw pillows

How to make

  1. Choose a corner of your fence or garden. Mark out a square or L-shape about 1.5–21.5–2 m wide.
  2. Set 3 or 4 posts: two along the back and one or two on the open sides. Secure with concrete or anchors.
  3. Attach beams at the top, then run rafters overhead, leaving moderate gaps for partial sun.
  4. Along the back and one side, attach vertical slats with small gaps in between to create privacy screens.
  5. Build a simple bench along the back wall using 2×4 supports and decking boards for the seat.
  6. Stain or paint the pergola and bench. Add soft outdoor cushions and a small side table or built-in shelf.
  7. Consider a small outdoor lantern, wall sconce (solar), or fairy lights to make it usable at dusk.

4. Pergola with Suspended Herb Ceiling

Turn your pergola into a living pantry with hanging herb planters forming a green “ceiling” of fragrance.

What makes it unique

Instead of climbing vines on the sides, this pergola uses suspended boxes and pots overhead, so you walk and dine under dangling basil, mint, and thyme.

Materials needed

  • Standard 4-post pergola structure (lumber as above)
  • Heavy-duty hooks or eye bolts
  • Chain or strong rope
  • Lightweight wooden or metal planter boxes and pots
  • Potting soil and herbs
  • Drip trays or liners
  • Outdoor stain or paint

How to make

  1. Build a basic rectangular pergola sized for your patio or deck.
  2. Plan a grid of hanging points: pre-drill overhead rafters and insert eye bolts where you want planters to hang.
  3. Attach chains or rope to your planter boxes and pots, adjusting lengths so they form a rough “ceiling” plane above head height.
  4. Line planters well to prevent drips; add potting soil and plant herbs that like ample sun (basil, rosemary, oregano, thyme).
  5. Stain or paint the pergola to complement your furniture; keep the planters neutral so the green foliage is the star.
  6. Arrange seating beneath so that when herbs grow in, they frame the view but don’t block walking paths.
  7. Add a simple irrigation system or hand-water regularly, checking for any dripping and adjusting liners as needed.

5. Convertible Shade-Panel Pergola

A pergola with sliding or hinged slatted panels you can open and close depending on the season or time of day.

What makes it unique

Most pergolas are fixed; this design uses movable panels that act like shutters—more shade when you want it, more sun when you don’t.

Materials needed

  • 4×4 or 6×6 posts, 2×6 beams, 2×4 rafters
  • Lightweight slatted panels (1×2 or 1×3 frame and slats)
  • Outdoor hinges or track hardware (barn-door style or U-channel)
  • Exterior screws and bolts
  • Stain or paint
  • Rope or simple latch hardware

How to make

  1. Build a standard pergola frame sized for your seating area, ensuring it’s square and sturdy.
  2. Measure between rafters and design lightweight rectangular panels to fit either on top or slightly below.
  3. Construct panels: build thin frames and fill with evenly spaced slats. Keep weight low so they’re easy to move.
  4. Decide if you want sliding or hinged action.
    • Sliding: mount panels in simple metal U-channels or a barn-door style track.
    • Hinged: attach one side of each panel to a rafter with outdoor hinges so it flips open.
  5. Install panels so you can overlap them for full shade or stack them for an open roof.
  6. Add simple handles, ropes, or latches to operate panels from the ground.
  7. Stain or paint everything in a unified color for a clean look.

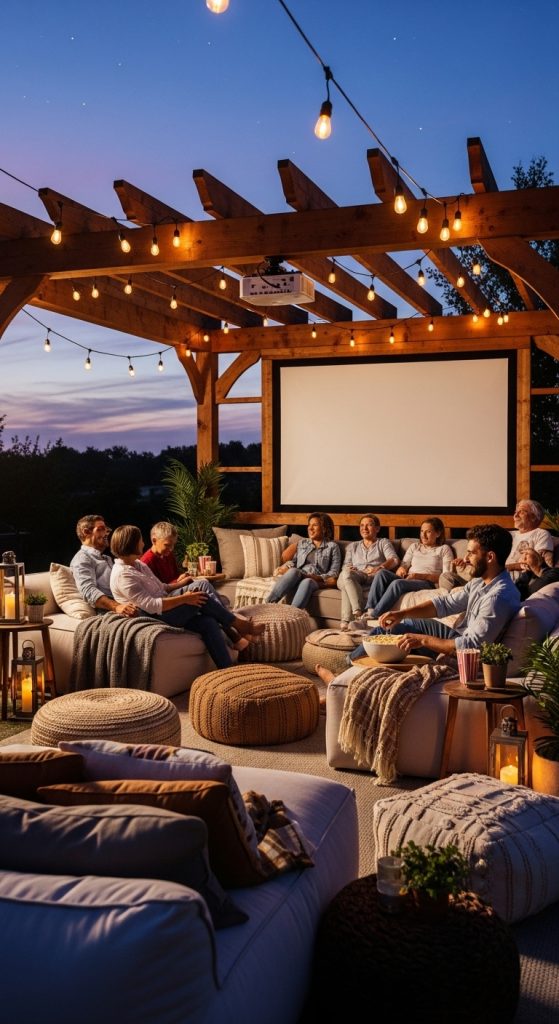

6. Pergola + Outdoor Movie Frame

A pergola designed with one end acting as a built-in movie screen frame for outdoor cinema nights.

What makes it unique

The pergola doubles as an outdoor living room and a dedicated movie zone, with a framed opening that holds a retractable screen or outdoor fabric.

Materials needed

  • Standard pergola lumber (posts, beams, rafters)
  • 2x4s to frame a screen opening
  • Outdoor-rated projector screen or white outdoor fabric
  • Eye hooks and curtain rod or cable for screen
  • String lights, outdoor rug, seating
  • Concrete, screws, stain/paint

How to make

  1. Position your pergola so one end faces a clear throw distance for a projector (usually 3–5 m).
  2. Build the pergola frame. On one end wall, create a rectangular frame between posts using 2x4s, sized to fit your screen.
  3. Install a curtain rod or cable across the top of that frame and add eye hooks or clips for hanging the screen.
  4. Hang a roll-up projector screen or hemmed outdoor fabric that can be pulled across when needed and tied back when not.
  5. Add rafters overhead and maybe a few cross-slats for a cozy roof effect.
  6. Lay an outdoor rug, low chairs, beanbags, or a sectional under the pergola facing the screen.
  7. String lights along beams for ambiance that can dim down during movie time.

7. Garden-to-Table Pergola Walkway

A long pergola that connects your kitchen door to your vegetable garden, lined with edible plants and hanging baskets.

What makes it unique

This pergola acts like a functional bridge between house and garden, combining a walkway, trellis, and edible display.

Materials needed

  • Series of 4×4 posts forming a corridor
  • 2×4 beams and rafters
  • Wire or trellis mesh for climbing plants
  • Hanging basket hooks
  • Planter boxes for sides
  • Veggies, herbs, and flowers
  • Concrete, screws, stain/paint

How to make

  1. Map a straight or gently curving route from your back door to your raised beds or garden area.
  2. Install pairs of posts about 1.5–21.5–2 m apart down the path, securing them in concrete.
  3. Connect posts with beams across the top; add rafters at right angles for structure.
  4. Attach trellis mesh or wire panels along the sides for peas, beans, or cucumbers to climb.
  5. Mount hooks along the beams and hang baskets filled with strawberries, herbs, or trailing flowers.
  6. Place long planter boxes at the base of posts with lettuce, tomatoes, or marigolds spilling out.
  7. Stain or paint the pergola, then add stepping stones or gravel underfoot to keep the pathway tidy and mud-free.

8. Two-Tone “Frame within a Frame” Pergola

A modern design where an inner pergola frame is nested inside a slightly larger outer frame, painted or stained in two contrasting colors.

What makes it unique

This pergola looks like a piece of modern art, with layered rectangles and contrasting finishes that add depth and visual interest.

Materials needed

  • 6×6 posts for outer frame
  • 4×4 posts for inner frame
  • 2×6 beams, 2×4 rafters
  • Concrete or post bases
  • Two exterior stain/paint colors (e.g., natural wood + black)
  • Screws/bolts, level, tape measure

How to make

  1. Define your overall pergola footprint (for example, 3.5×43.5×4 m).
  2. Set the four outer 6×6 posts at the corners and build the outer frame with beams.
  3. Inside that rectangle, set four slightly shorter 4×4 posts, inset by 20–30 cm from each outer post.
  4. Build a second pergola “box” on these inner posts with its own beams and rafters.
  5. Stain or paint the outer frame in one color (e.g., deep charcoal) and the inner frame in another (e.g., warm cedar).
  6. Add rafters across both frames; you can stagger or rotate them to create interesting patterns.
  7. Place furniture aligned with the inner frame so it feels like a defined “room” inside the larger structure.

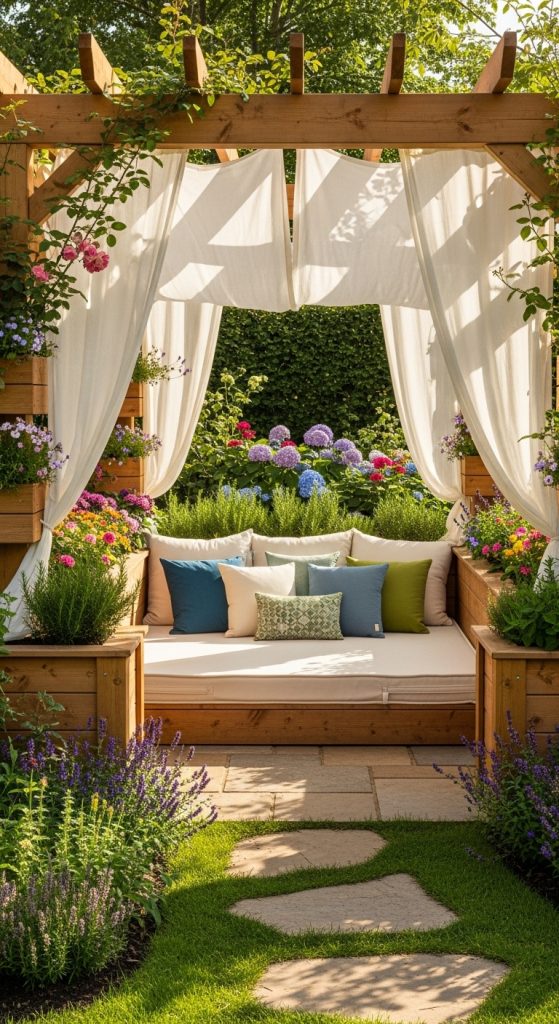

9. Pergola Daybed with Integrated Planter Walls

Combine a pergola, daybed, and raised planters into one relaxing garden retreat.

What makes it unique

Instead of freestanding planters and furniture, this design builds planters into the base of the pergola so greenery naturally hugs the daybed.

Materials needed

  • 4×4 posts for pergola
  • 2×6 beams, 2×4 rafters
  • Exterior-grade boards for raised planters
  • Decking boards or pallet slats for daybed base
  • Thick outdoor mattress and cushions
  • Potting mix and plants
  • Concrete, screws, stain/paint

How to make

  1. Mark a rectangle about 2.5×32.5×3 m where you want your pergola daybed to sit.
  2. Set pergola posts at the corners. Around the base, build raised planter boxes along three sides using sturdy boards attached to the posts.
  3. In the center, construct a platform daybed base using decking boards; make it just high enough to clear the planter rims.
  4. Add beams and rafters overhead like a classic pergola. Optionally staple shade cloth or drape fabric for partial cover.
  5. Stain/paint all wood surfaces.
  6. Fill planters with soil and plant a mix of trailing flowers, aromatic herbs, and maybe a climbing vine on the back posts.
  7. Place a thick outdoor mattress and cushions on the platform; add a side shelf or small table for drinks and books.

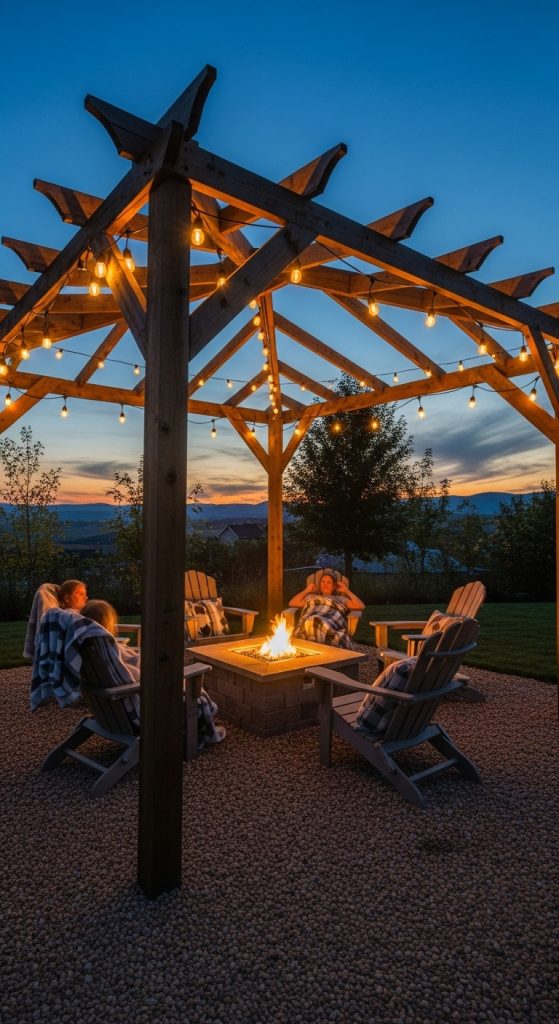

10. Fire-Pit Pergola with Overhead Ember Glow

A pergola built specifically to frame a central fire pit, with a safe open roof and warm overhead lighting that echoes firelight.

What makes it unique

Instead of a random fire pit in the yard, this design creates an intentional “fire room” with vertical structure and layered lighting.

Safety note: Always keep combustible materials a safe distance from open flames; use a smokeless or gas fire pit if possible, and keep the pergola roof open (no fabric directly overhead).

Materials needed

  • 4×4 or 6×6 posts, 2×6 beams, 2×4 rafters
  • Concrete, screws/bolts
  • Circular or square fire pit (gas or smokeless preferred)
  • Gravel or pavers for flooring
  • String lights or warm Edison bulbs
  • Metal lanterns or sconces

How to make

  1. Choose a location clear of trees and structures, respecting fire safety distances and local codes.
  2. Build a square or circular pergola frame around where the fire pit will sit, leaving ample clearance on all sides.
  3. Add beams and rafters, keeping the roof open—no solid cover or overhead fabric directly above the pit.
  4. Install gravel or pavers underfoot for a non-flammable surface.
  5. Place the fire pit in the center and surround it with low, deep seating or Adirondack-style chairs.
  6. String warm-toned lights along rafters and posts. Add metal lanterns or wall-mounted sconces on the posts if desired.
  7. Keep a hose or extinguisher nearby, and never leave the fire unattended.
